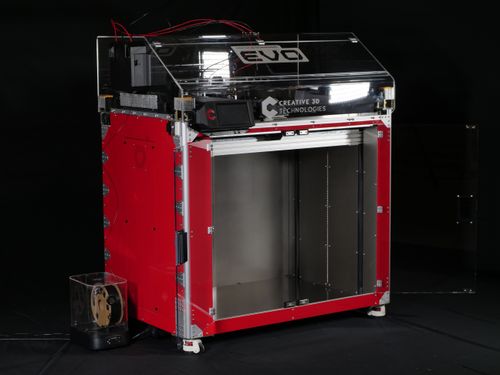

This is EVO
The company’s flagship platform is built for acceleration, tolerance, precision, accuracy, reliability, rigidity, and modularity far exceeding the industry's current needs.
As print technology continues to develop and get closer to what EVO is capable of as a platform, EVO will EVOlve with it, offering sufficient spec to support the latest and greatest printing technology even years down the line with new Toolheads. EVO won’t just stay relevant; it stays at the top. EVO is an entire specialty 3D print shop all in a single affordable system.
One of EVO’s most unique points is the Toolhead system, which enables you to switch in seconds from standard print resolutions + materials, to SLA-competitive levels of detail, to thick high-speed layers, and soon Pellet Extrusion, Paste Extrusion, and even other production formats such as Pick and Place, Milling, and circuitry tracing!
Quality and Reliability Where It Counts
Full Enclosure
EVO is equipped with a full-metal enclosure and a high-power heater to ensure prints stay hot throughout printing!
Large Format
EVO is built to let your ideas go BIG! From large parts to production batches and more, EVO offers the most affordable volume in any truly industrial 3D printer.
C3DT COREXY IDEX Kinematics
Between 2 and 4 motors run every axis on EVO, even the extruders! With our unique kinematic layout eliminating idlers, maximizing grip, and axial lightness, EVO is capable of fast, complex, and reliable movement, even enabling sequential batch part production, mirror batch part production, multi-material prints, and even multi-medium prints!
Z Axis
With 4 independently running motors and custom high-precision ball screws, EVO’s Z-Axis can achieve fractions of a micron movement precision, self-level, and even tram (correct skew) fully autonomously!
Rigid Frame
Don’t be deceived by simple appearances; EVO’s frame is optimized for cost efficiency and over-engineered to maintain micron levels of detail even if bent!
Connectivity
EVO runs on an x86 interface, enabling not only fast and reliable execution of code but also offers excellent connectivity via Ethernet or WiFi!
Flexible Build Plate System
Eliminate downtime and consumable costs with a modular build plate system that makes removing prints easy and enables the use of both custom and upcoming build surfaces to enable even more print formats!
Brand Names
EVO collaborates with and utilizes hardware from suppliers such as Slice Engineering, Dyze Design, Gates, Mean Well, Hiwin, WhamBam Systems and more.
Smart Features
EVO can detect power outages, filament outages, filament stalling, and more thanks to its advanced electronics an d sensors!
Mobility
EVO is designed to be moved! It has leveling casters to enable easy transportation, fits through a standard US door, fits on a standard pallet, and offers the maximum volume possible within those specs.
See EVO
Most manufacturing machines are built around a tool, extruding, projecting, milling, wiring, pick and place, etc. Tools are then built into a minimum-spec machine capable of using that tool. Creative 3D Technologies aims higher. We strive for Single-Cell Manufacturing, a machinery system that not only meets but exceeds the spec of speed, rigidity, material capability, precision, etc., that would define many separate specialty production machines. Instead of limiting ourselves to one tool, we innovate, enhance capabilities, add new dimensions to typically simple tools, and create systems capable of using multiple tools in one process. Imagine one machine doing the jobs of many, a factory-in-a-box that shifts from tool to tool instead of machine to machine on a line, creating a fully finished product on-site and on demand.
Technical Specifications
Specifications
Detail
Peak power consumption
15A 110v 7.5A 220v
Complete machine weight
100kg
Printer external size
1194 x 788 x 1107 (mm)
Minimum layer width
60 Micron
Layer/height resolution
<5 Micron
Supported printing technologies
FFF, Bound Material FFF, Continuous Reinforced FFF, (Pellet/Paste Extrusion 2025)
Kinematic system
C3DT'S IDEX Core XYU
Toolhead specifications
Smart Self-Identifying Tool System with Quick Swap Kinematic Mounting Plate Technology
Extruder type
Dual Pinch Mix-Drive System
Max temperatures (Heated Enclosure)
90°c
Max temperatures (Heated Bed)
150°c
Max temperatures (Detail Tool)
300°c
Max temperatures (Standard and HS Tools)
450°c
Build volume without bellows
490 (Single)/455 (Ditto) x 875 x 780 (mm)
Build volume with bellows
470 (Single)/440 (Ditto) x 775 x 780 (mm)
